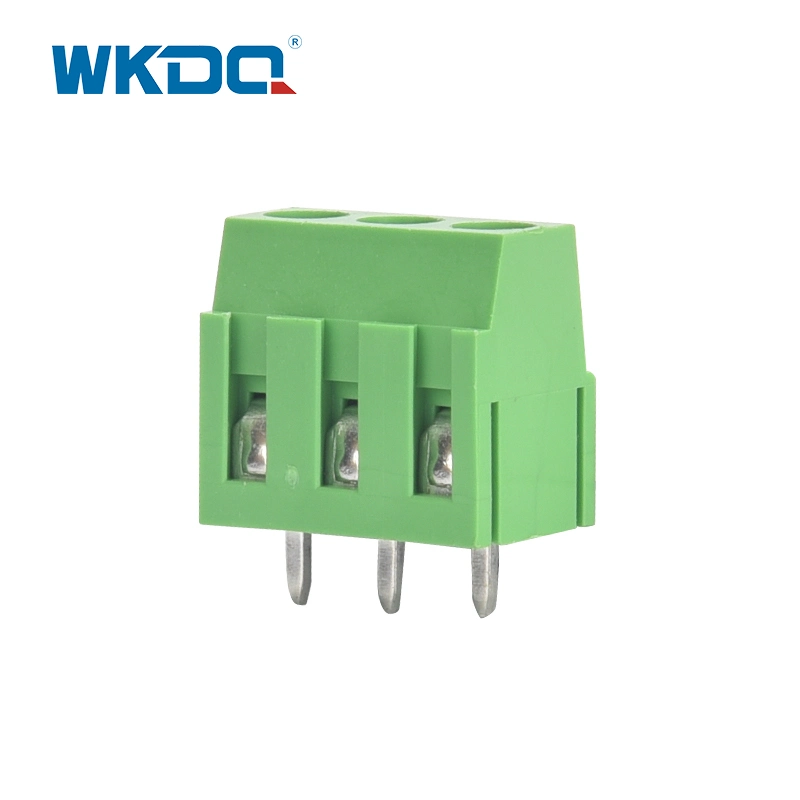

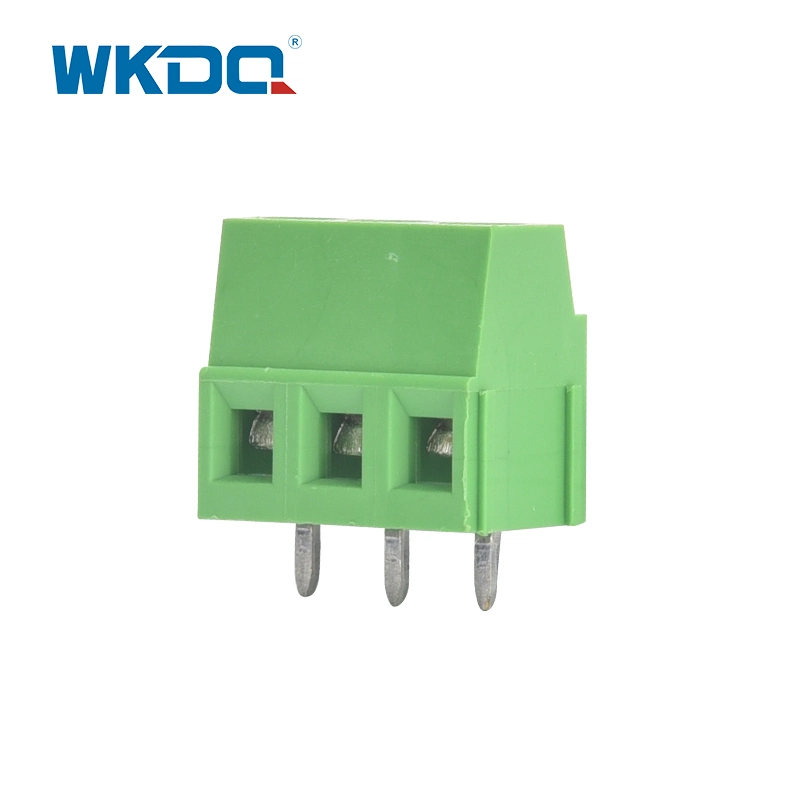

Plastic DC Screw PCB Terminal Block Connector 5.08mm pitch
1. DESCRIPTION:
This family of connectors came around when engineers needed an easy way to connect electrical wires together without having to join mechanical parts physically. You'll find terminal blocks being used on some PCBs, where a portion of the terminal block is attached to the board, and the other part containing the wires can be removed at will for an easy swapping process.
Technical Parameters
1. DESCRIPTION:
This family of connectors came around when engineers needed an easy way to connect electrical wires together without having to join mechanical parts physically. You'll find terminal blocks being used on some PCBs, where a portion of the terminal block is attached to the board, and the other part containing the wires can be removed at will for an easy swapping process.
- Screw Connection
- Compact design and can connect multiple Connector together
- Flame retardant material PA66 and Brass Conductor
- 5.08 mm Pitch
Technical Parameters
Model No. | WK 128-5.08 |
Color | Green |
Length/Height/Wide (mm) | 15.24*14*10 |
Pole Number | 3P |
Connection method | Screw connection |
Material | Flame resistant Nylon PA66, Nickel plated brass conductor |
Rated Voltage/Current | 300V/10A |
Conductor Size | 26-16AWG |
PIN | 5.08mm |
Standard | IEC 60947-7-1 |
Certification | CE/RoHS/CQC/ISO 9001 |
FAQ
Q1 : Are you manufacturer ?
We are factory specializing in Terminal Blocks, Fans Filters Since 1999.
Q2: Can you make customized products or packing?
Of course, our R&D Depart. have rich experience in OEM, ODM service. Package can be customized as demanded.
Q3:What about your MOQ?
We keep large stocks for standard product with Fast Delivery, no MOQ required.
Q4: Do you have any test certification?
Products approved by CE, RoHs, etc. Our factory passed by SGS and CQC ISO9001 Qualification.
Q5: How about the after-sale service? What's the warranty terms?
If you have any problems after sales, we'll bring out solution within 24 hours. Quality warranty is 1 year, for problems happened over 1 year, we can also assist to solve.
Q1 : Are you manufacturer ?
We are factory specializing in Terminal Blocks, Fans Filters Since 1999.
Q2: Can you make customized products or packing?
Of course, our R&D Depart. have rich experience in OEM, ODM service. Package can be customized as demanded.
Q3:What about your MOQ?
We keep large stocks for standard product with Fast Delivery, no MOQ required.
Q4: Do you have any test certification?
Products approved by CE, RoHs, etc. Our factory passed by SGS and CQC ISO9001 Qualification.
Q5: How about the after-sale service? What's the warranty terms?
If you have any problems after sales, we'll bring out solution within 24 hours. Quality warranty is 1 year, for problems happened over 1 year, we can also assist to solve.
