Industrial Water Screw Type 30 Tons Air Cooled Screw Chiller Price

As a leading air cooled screw chiller supplier,MGREENBELT provides a complete range of air-cooled screw chiller,  with cooling capacity from 20Ton to 150Ton/80KW to 530KW and the chiller temperature control range is +30ºC to -30ºC.
Besides the standard air-cooled screw chiller control temperature of 7ºC to 25ºC, MGREENBELT also has air-cooled glycol screw chiller control temperature below zero from 0ºC to -30ºC.

Water Chiller General Introduction

Outlet water temeprature:  +7 C° to 30C°
Power Supply: 3PH-380V-50Hz, or based on user local need.
Refrigerant: R22 / R407c / R134a / R404a .
Chiller Cooling Capacity: 20 ton ~ 150 tons
Semi-hermetic screw type compressor
Air-cooled type condenser
Closed loop shell and tube evaporator
No need to install a cooling tower


MGREENBELT Water Chiller Description
As a leading air cooled screw chiller supplier,  Chiller provides a complete range of air-cooled screw chiller from MG-CS series, with cooling capacity from 50Ton to 580Ton/130KW to 1950KW and the chiller temperature control range is +30ºC to -30ºC.

Besides the standard air-cooled screw chiller control temperature of 7ºC to 30ºC, Mgreenbelt also has air-cooled glycol screw chiller control temperature below zero from 0ºC to -30ºC

Each air cooled screw chiller designed from MG Chiller has the following features:

Using world famous brand semi-hermetic screw compressor- Bitzer from Germany and Handbell from Taiwan.

Each screw compressor with 4 steps of energy control 25%-50%-75%-100% to make sure the whole screw chiller is stable and guarantee high refrigeration performance. There are also 2 or 3 compressors for optional depends on the required refrigeration capacity.

Highly efficient closed loop shell and tube type heat exchanger as the evaporator, and using air cooled type condenser-Copper tube sleeve aluminum fin with big volume air cooling fan.

Integrated PLC control system with human-computer interface and big LED touch screen panel for easy operation and troubleshooting.

World famous refrigeration spare parts like Danfoss brand thermal expansion valve, Alco dryer filter, Schneider electrical contactor, and overload relay will make sure the whole air cooled screw chiller works under normal conditions.

The above original quality refrigeration spare parts will ensure each air cooled screw chiller at a steady running condition.





Specification for air cooled water chillers

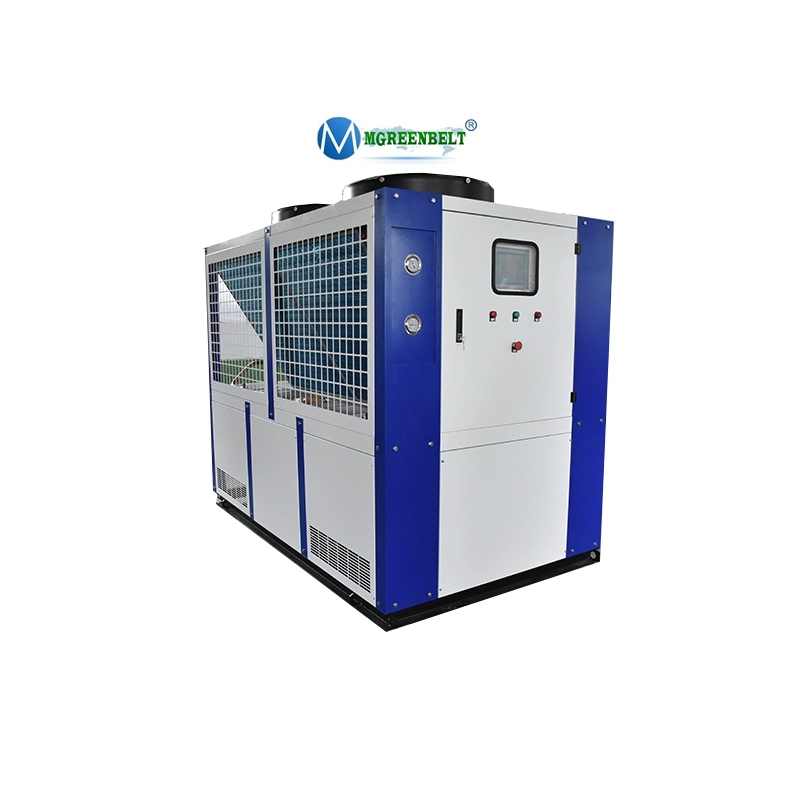

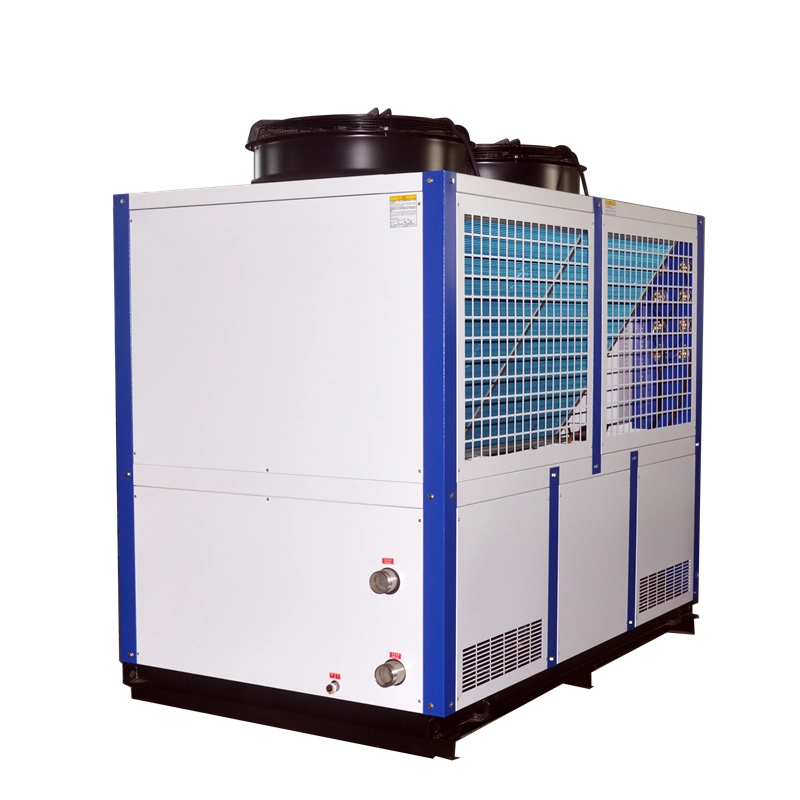

Air cooled screw chiller Show

Water chiller case

Industrial Water Screw Type 30 Tons Air Cooled Screw Chiller Price
Air cooled screw chillers are also widely used in plastic processing and plastic machinery including: plastic injection molding, plastic extruders and extrusion line, blowing molding machine.
It can precisely control the exactly temperature , which requested by the modernized machinery production, and greatly improved the production efficiency and product quality. MGREENBELT Industrial chiller is a good partner for the modernized industry , which feather as easy to operate with reasonable design, high quality and complete range of specifications.

Our Team

Production range:
If you do not find the chillers that you need, please do not frustrated, as long as your chilled temperature is in the range from Minus 35 degree to Positive 35 degree, just contact me , we are the solutive manufacturer for you.

1).Power supply:Single or 3 phase ,208-240V,380-415V,440V-460V, 50Hz or 60Hz;
2).Refrigerant  R-22 or Eco friendly R-407C,R-410A,R-134A,R-404A
3).Outlet temperature range: -25°C , -20°C , -15°C, -10°C , -5°C , 0°C , 5°C ~35°C
4).Cooling capacity: 2.7kw~2015.6kw (0.8tons-573tons)
5).Compressor type:Screw type,Scroll type
6).Compressor brand: Sanyo,Copeland, Danfoss, Daikin, Hanbell, Bitzer


Service Team

A. 14 Months warranty and life time technical maintenance offered.
B. All extra parts for the machine can be purchased with agent price from Mgreenbelt
C. 24 Hours working phone call/Email/Skype/MSN/Wechat/Whatsapp/Trade manager online to support.
D. Professional technical team and sales person give you regarding troubleshooting procedures via Internet and Phone any time when needed.
E. Free and Professional Training at our Factory under the relaxed condition

FAQ

Q:How to choose a right chiller model?
A:Please make sure the details as follow:
When you send the inquiry to us, pls kindly send it with below technical  information.
1)water chiller type: Air cooled or water cooled
2)Cooling capacity:       _____    Kcal/hr  or   _____KW
3)Refrigerant:  R22 or others friendly R410A, R407C
4) Voltages and Frequency :   ______V/PH/HZ

Q: How to quote a accurate solution for you?
A: After make sure the cooling capacity,please inform us:
1.What's the power supply need? Phase/Voltage/Frequency.
2.What's the refrigerant need? R22/R407C/R410A/R134A and etc.

If this  water chiller not suitable for your working need, we have different chiller series, please choose it as follows.
1. Air Cooled Scroll Chiller : cooling capacity range from 1 ton to 35 tons;
2. Water Cooled Scroll Chiller : cooling capacity range from 1 ton to 40 tons;
3. Air Cooled Screw Chiller : cooling capacity range from 20 tons to 150 tons;
4. Water Cooled Screw Chiller :cooling capacity range from 25 ton to 400 tons;


As a professional industrial chiller manufactuer and solution provider , we can supply kinds of chillers to meet your different cooling requirement, if the chillers above is not workable for you, please feel free send needs to us directly.
